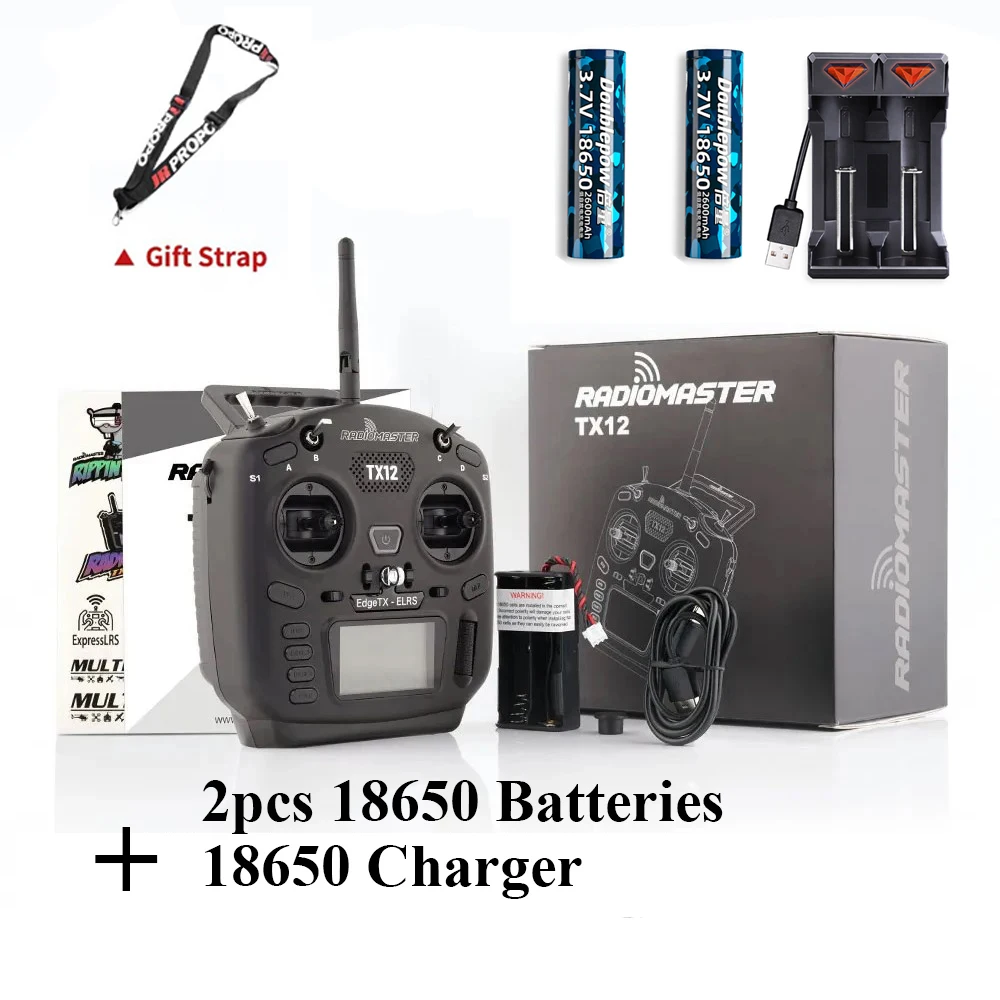

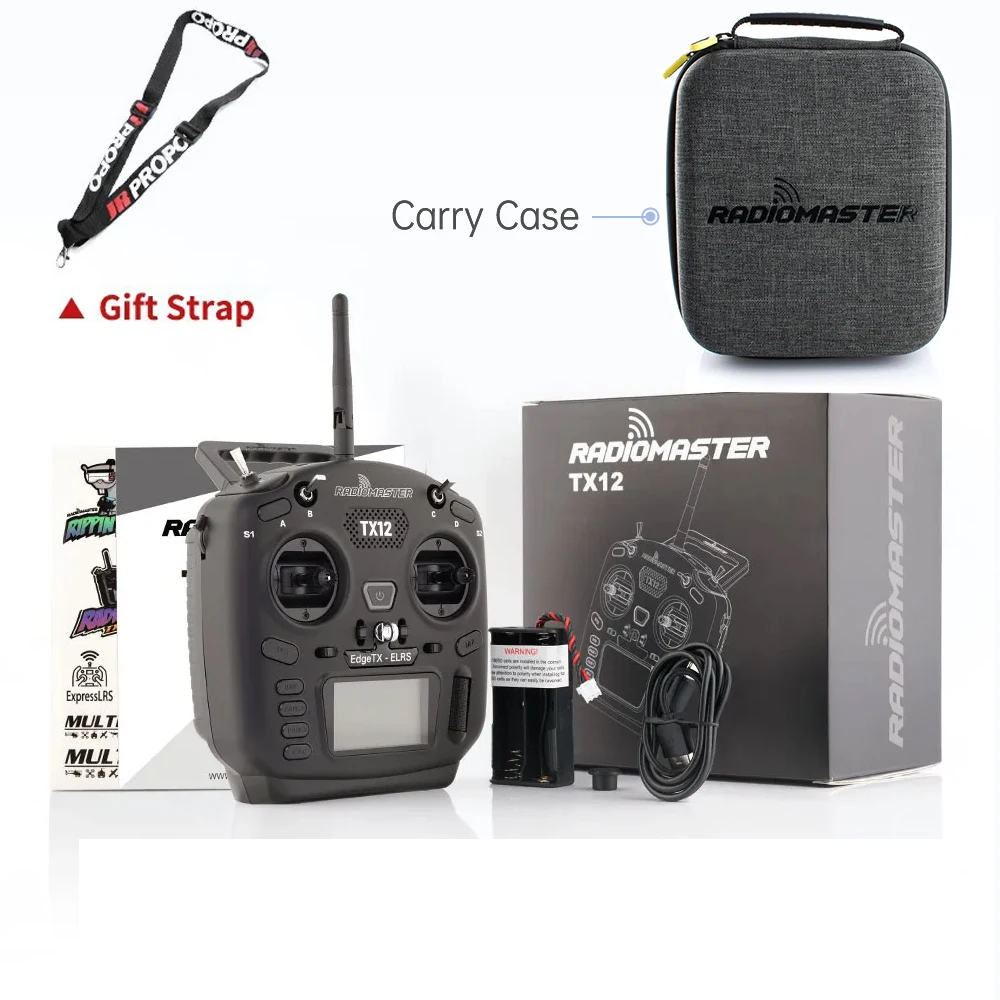

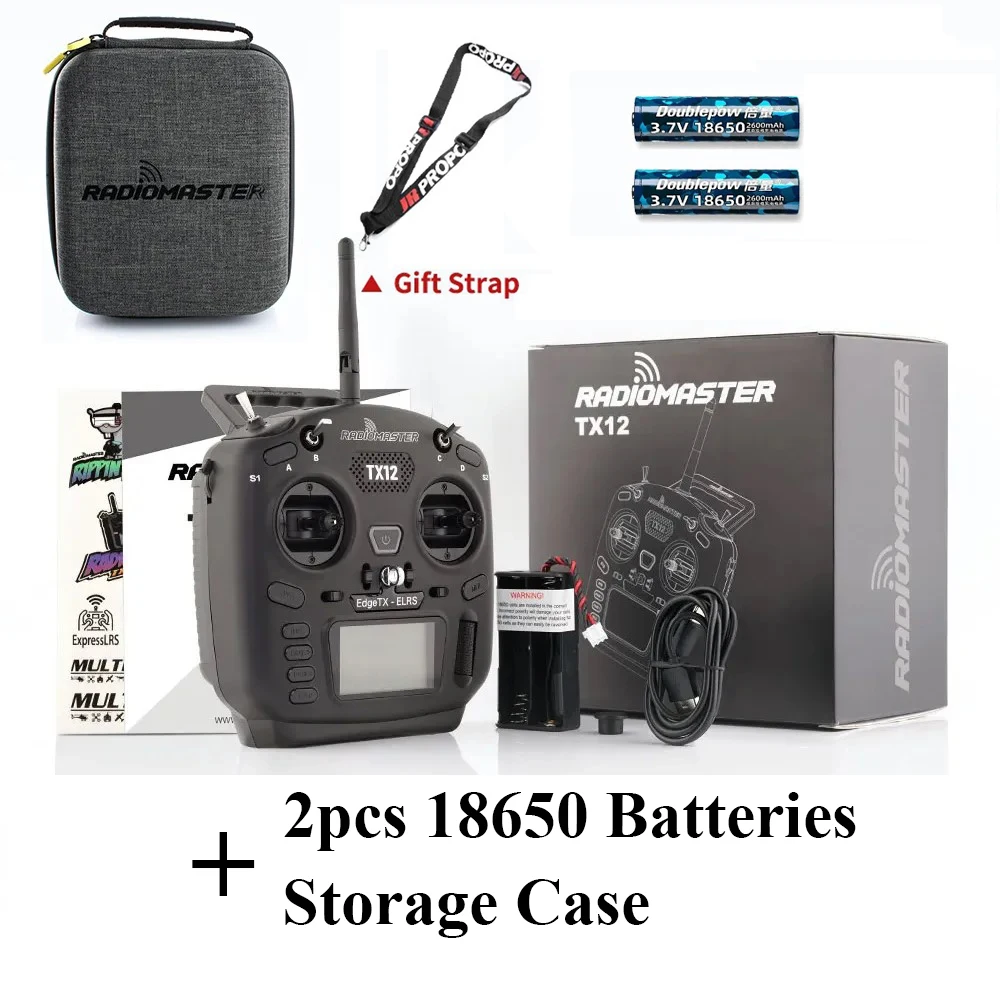

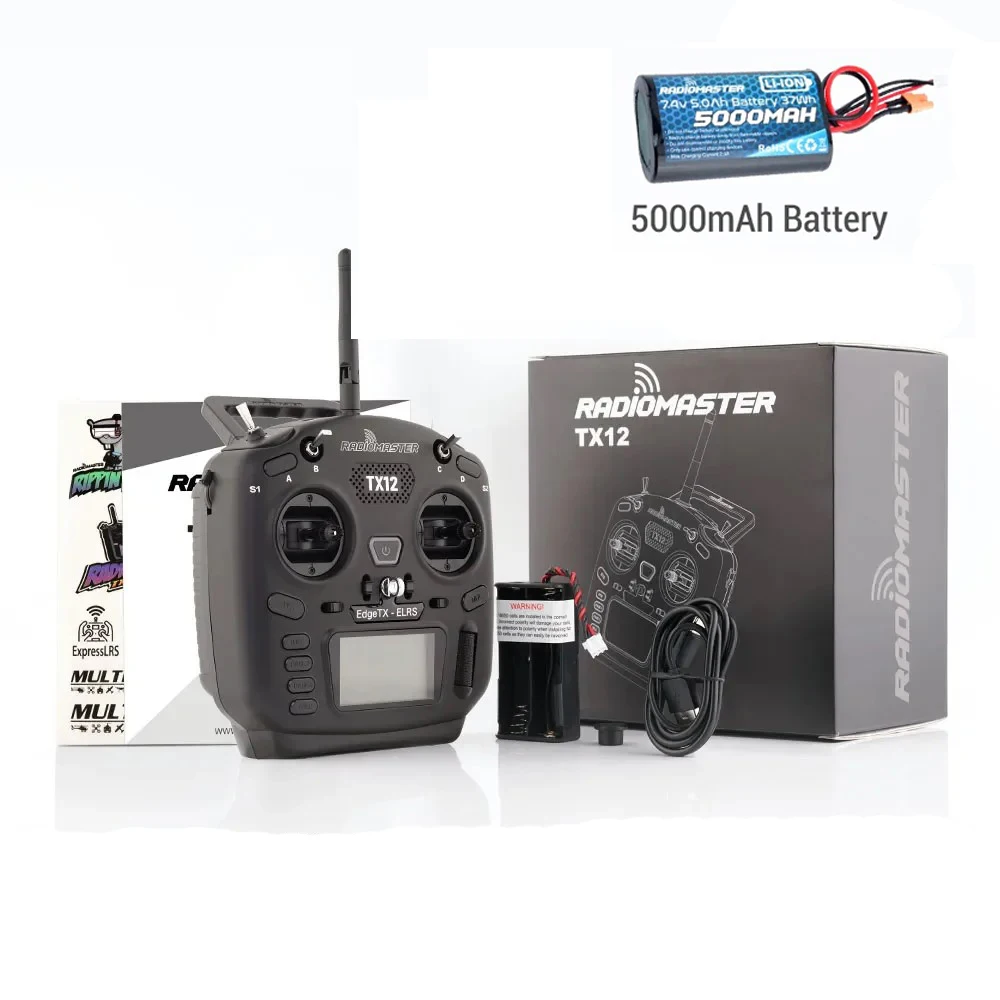

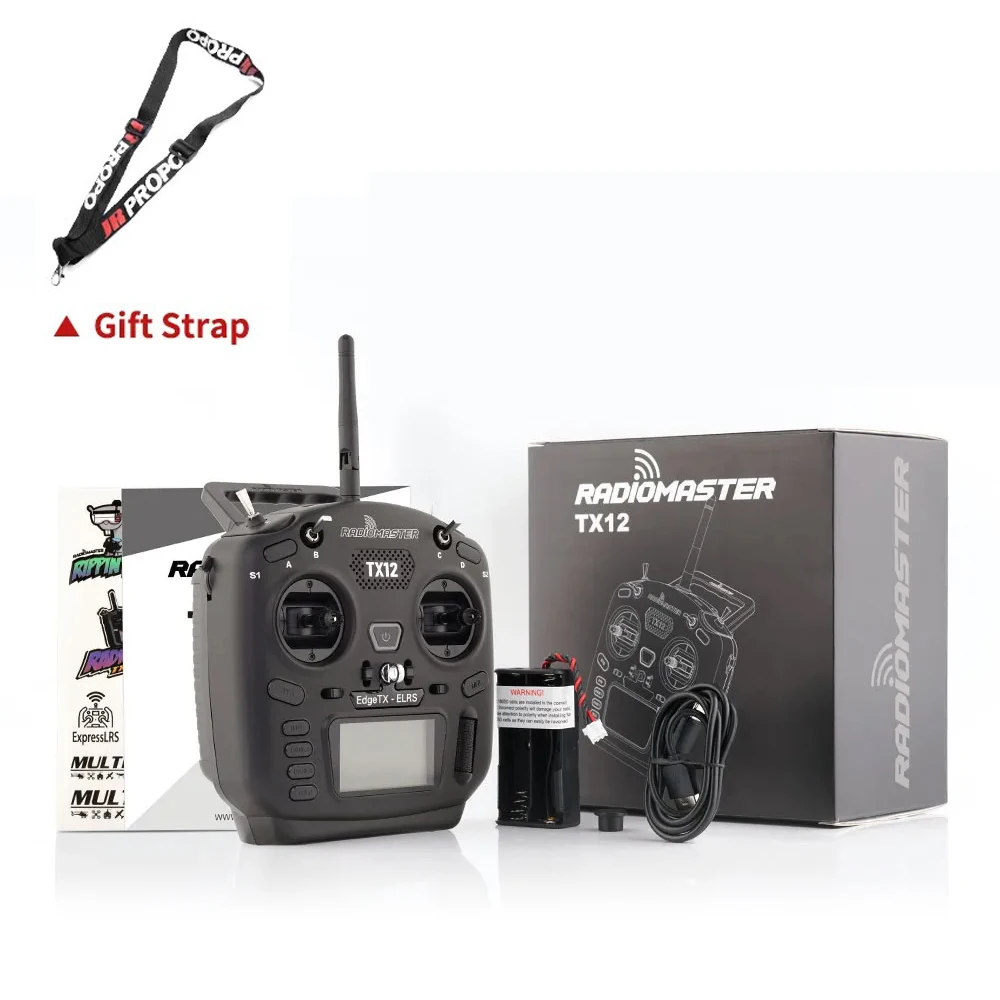

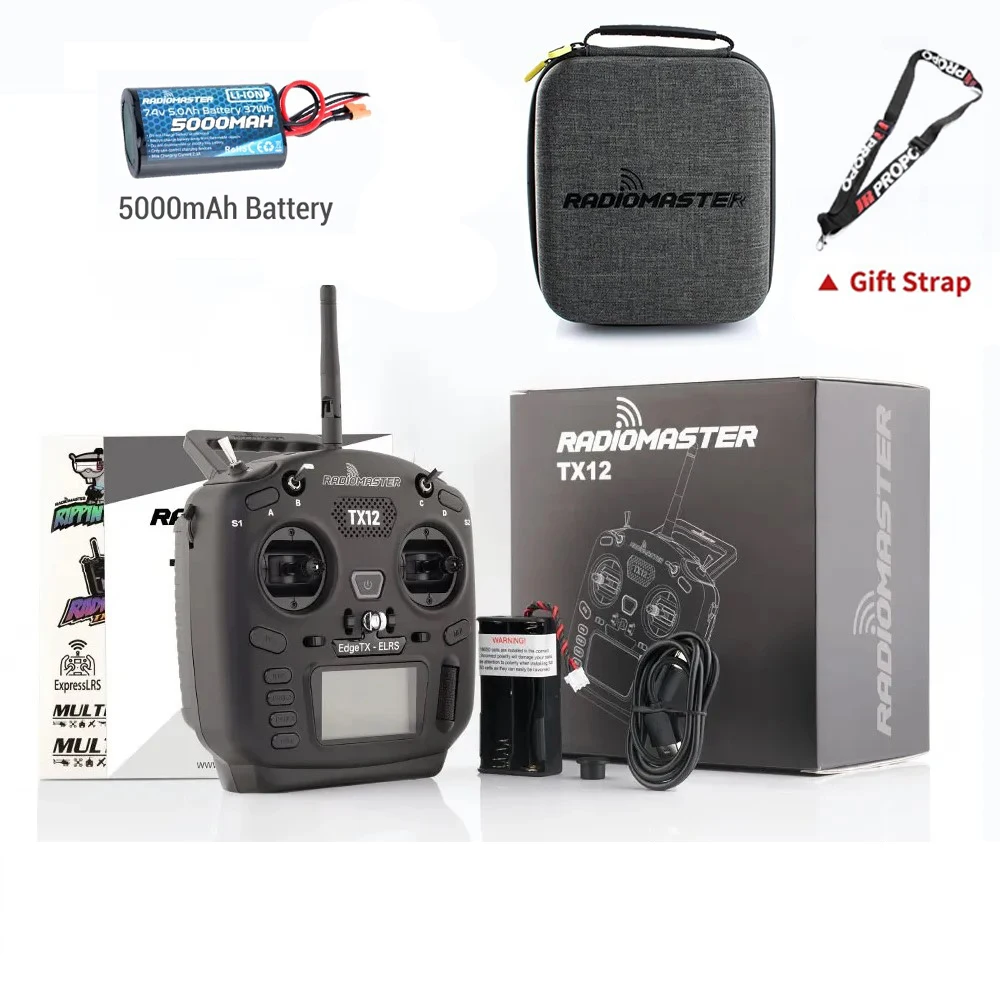

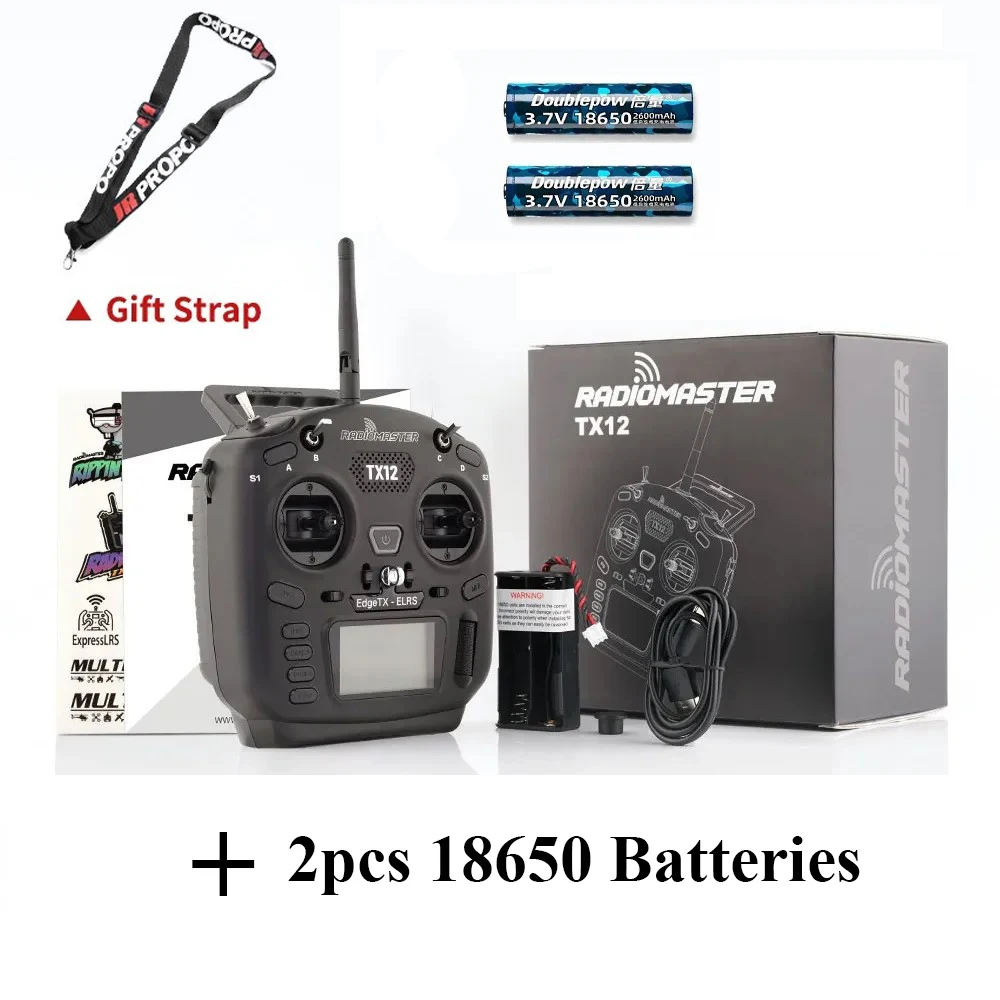

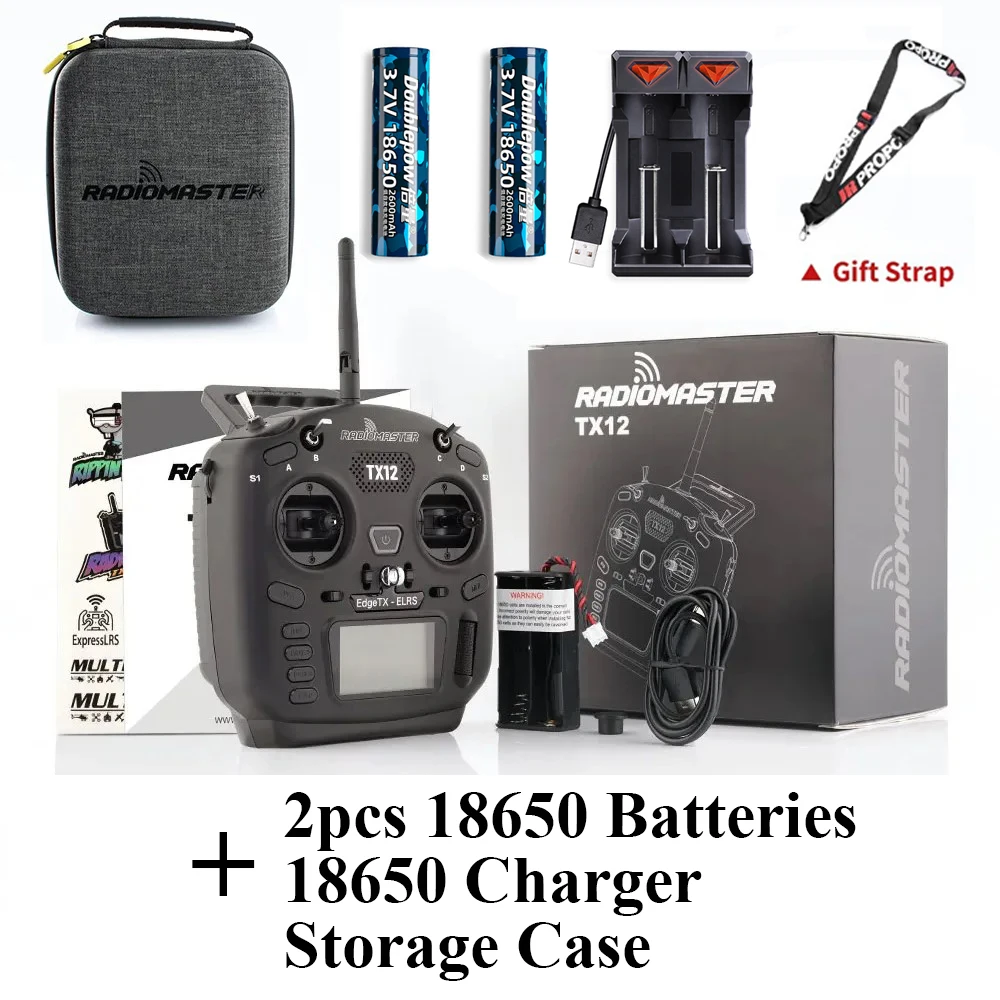

RadioMaster TX12 MKII ELRS EdgeTX OpenTX FCC LBT M2 16CH Hall Gimbals Multi-Module Compatible Radio Control Transmitter

4,585 Views
0.0 (0)
0 Sold
$252.62
/ Piece
Delivery Dec 27
Shipping $27.60
Brand: other
828 available
Total:
Top Selling Products

Reviews & Ratings

0
0 reviews
5
0
4
0
3
0
2
0
1
0

No reviews yet. Be the first to review!









You Need to Know

1. There are 2 certifications for all brands of remote controllers- FCC and LBT

2. FCC is American radio certification. LBT is EU radio certification.

3. Since the EU has many restrictions, the LBT version has removed many functions that do not comply with EU regulations. It is not as complete as the FCC version.

4. Outside the EU, we recommend to choose the FCC version. If you are in EU, it's better to choose LBT version.



Note

Mode 2- Left hand throttle

★ ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependnant)


Specification-XR1 Receiver

Item: XR1 Nano Multi-Frequency ExpressLRS Receiver

Type: ISM2.4 or FCC915

MCU: ESP32C3

RF chip: Semtech LR1121

RF connector: IPEX-1

Antenna: 1x T-Antenna (Dual-band)

Frequency Range: 2.4GHz or Sub-G 900MHz

Telemetry Power: 100mW

Maximum Packet rate: DK500Hz / K1000Hz

Minimum Packet refresh rate: 50Hz

Working voltage: 5V

Weight: 1.0g (without antenna)

Dimension: 20mm * 13mm * 3mm

Firmware Version: ExpressLRS v3.5.1 pre-installed

FW Target: RadioMaster XR1 2.4/900 RX

Bus interface 1: CRSF

Bus interface 2: UART



Specification-RP1 Receiver

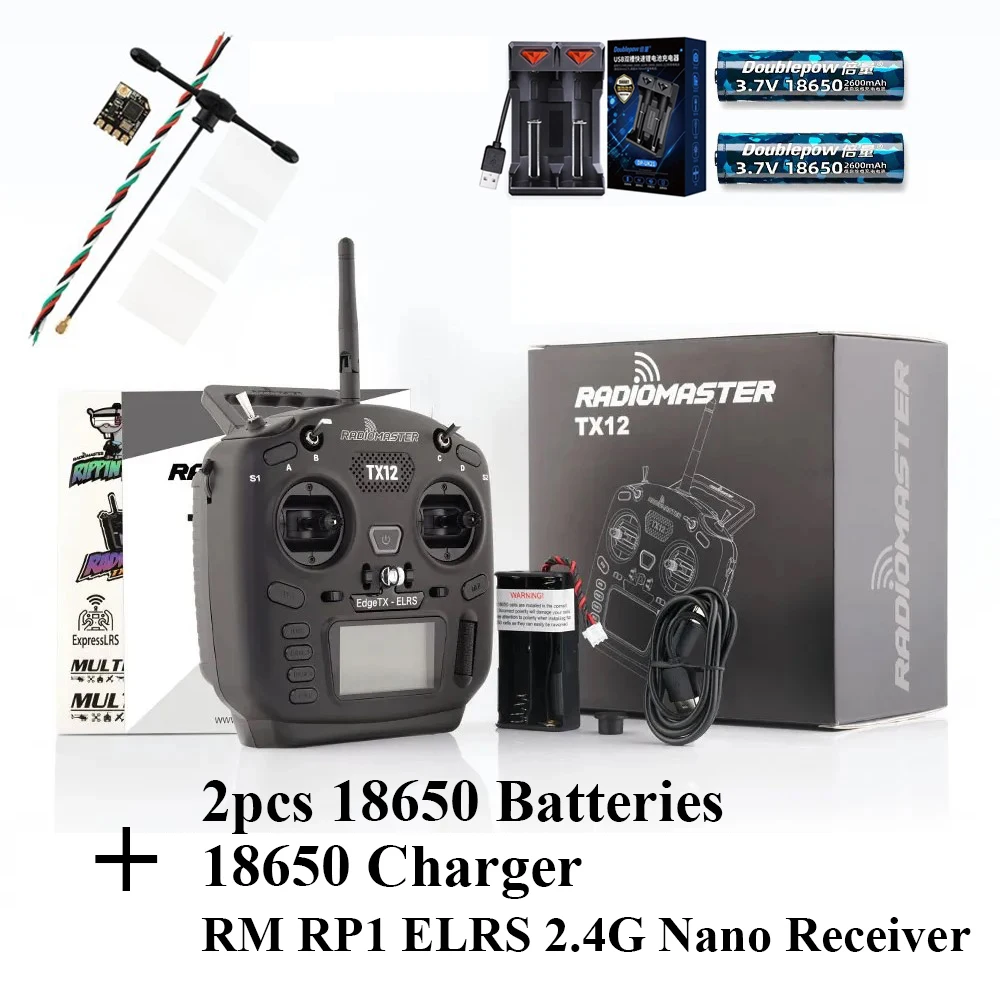

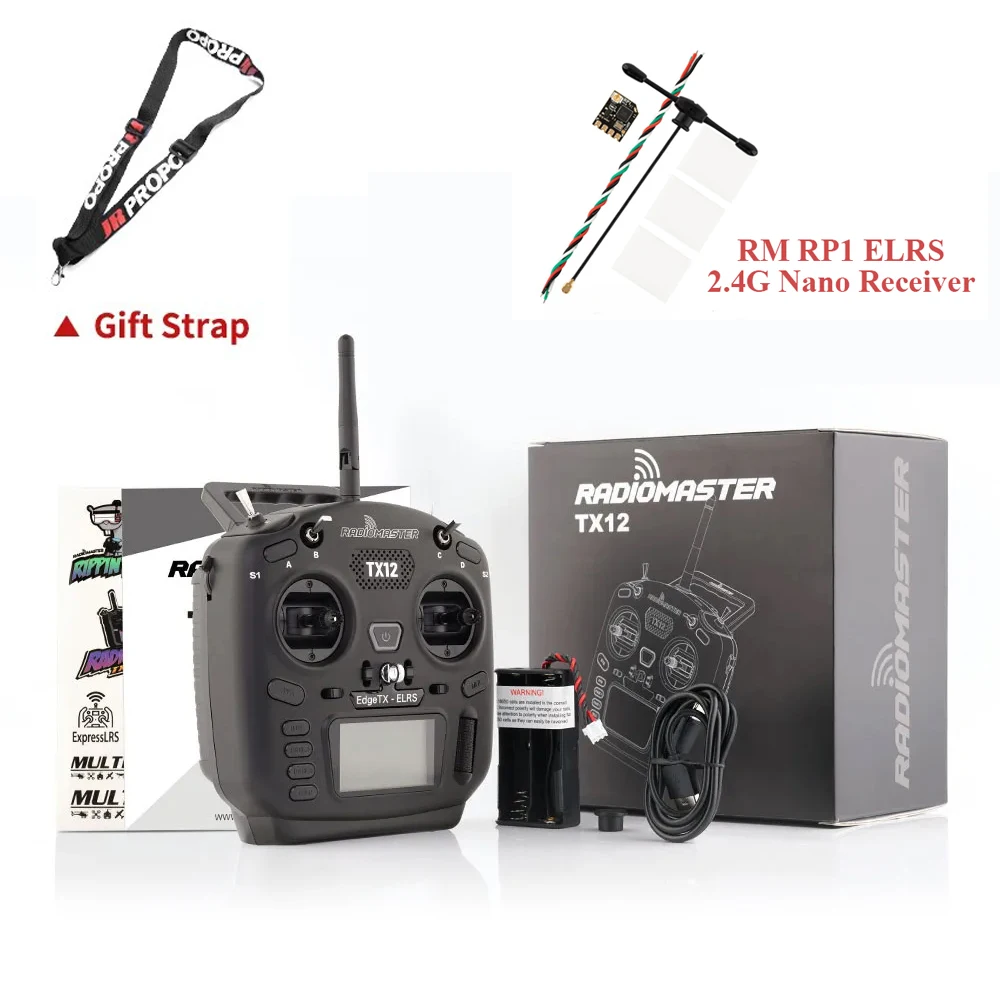

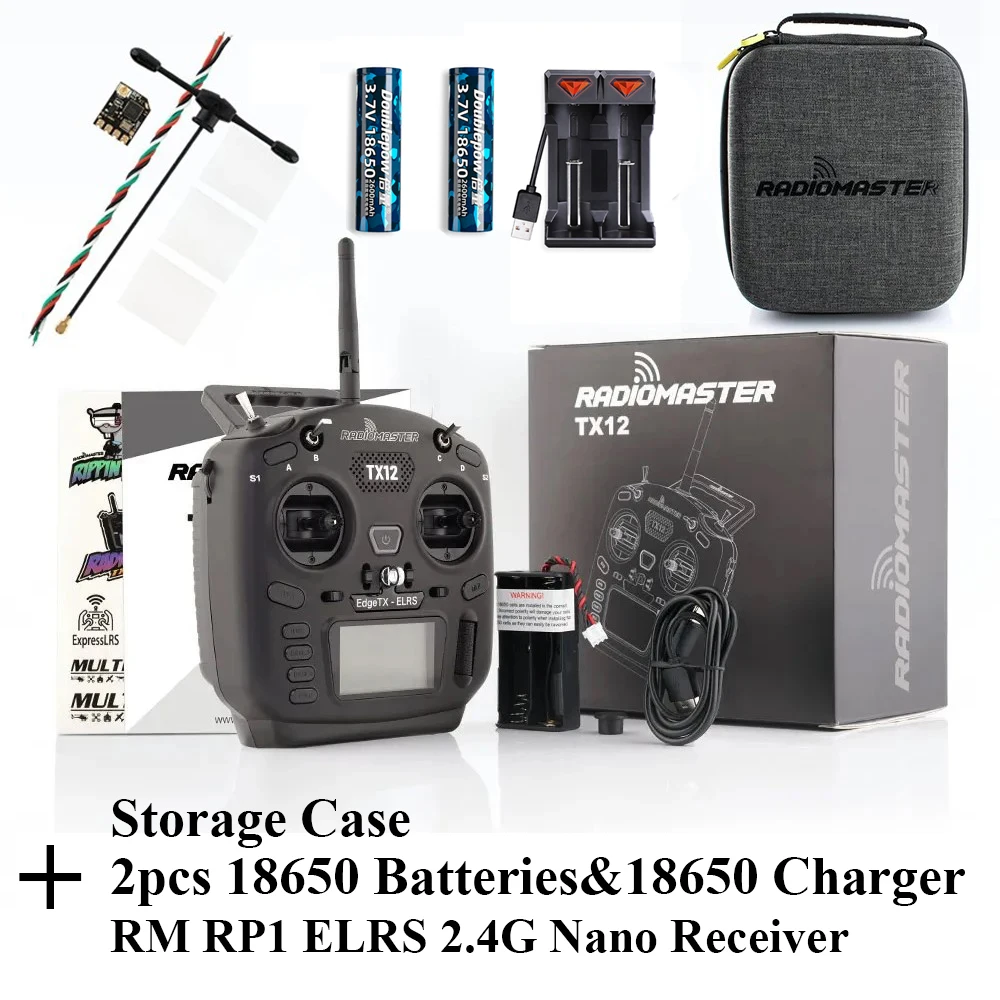

Item: RP1 Nano ExpressLRS 2.4ghz Receiver
Type: ISM
MCU: EPS8285
RF Chip: SEMTECH SX1281
Telemetry RF power: 10mW
Antenna: 65mm 2.4ghz T Antenna
Frequency Range: 2.404 - 2.479 Ghz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 2.2g (Including antenna)
Dimension: 13mm*11mm*3mm
Firmware Version: ExpressLRS v2.4 pre-installed
FW Target: RadioMaster RP1/2 2400 RX
Bus interface: CRSF

Feature

Size: 170*159*108mm

Frequency： 2.400GHZ-2.480GHZ

RF Chip： ExpressLRS (ELRS)

Working Current： 320mA@8.4V

Voltage Range：6.6-8.4v DC

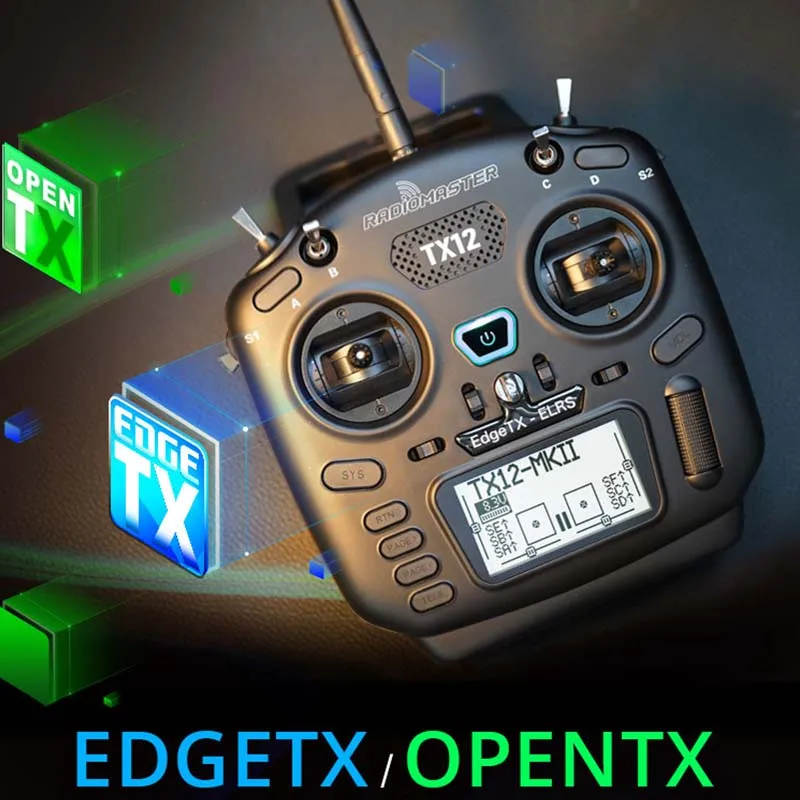

Radio Firmware： EdgeTX (Transmitter) / ExpressLRS (RF module)

Channels： Up to 16 (depending on receiver)

Display：128*64 Monochrome LCD display

Gimbal： High precision hall gimbals

External module：JR/FrSKY/Crossfire compatible

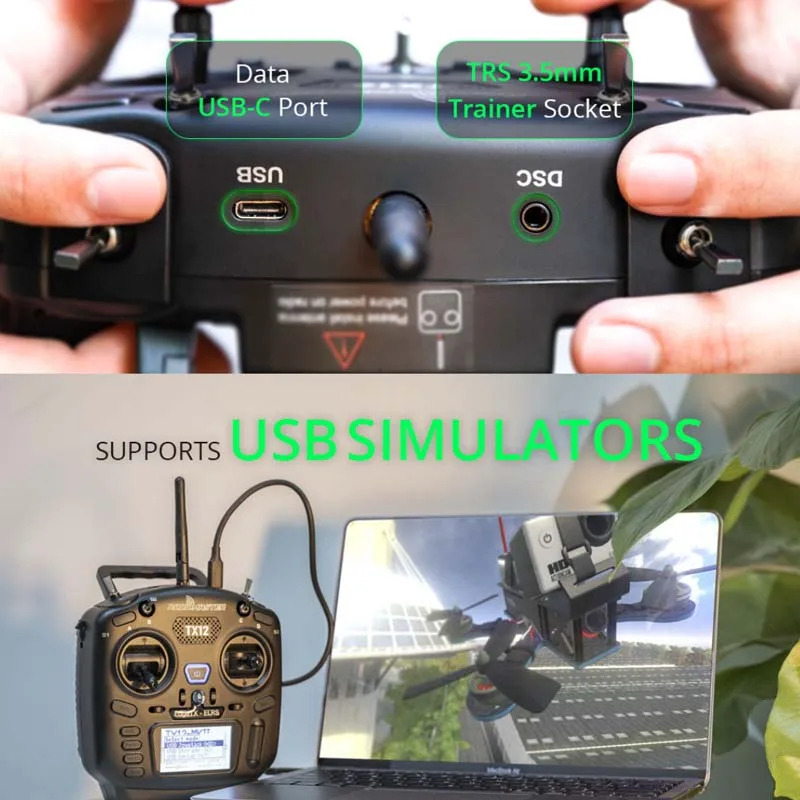

Upgrade Method： USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

USB Charging: QC3 USB-C

SD Card: Included


IMPROVEMENTS

New to TX12 MKII

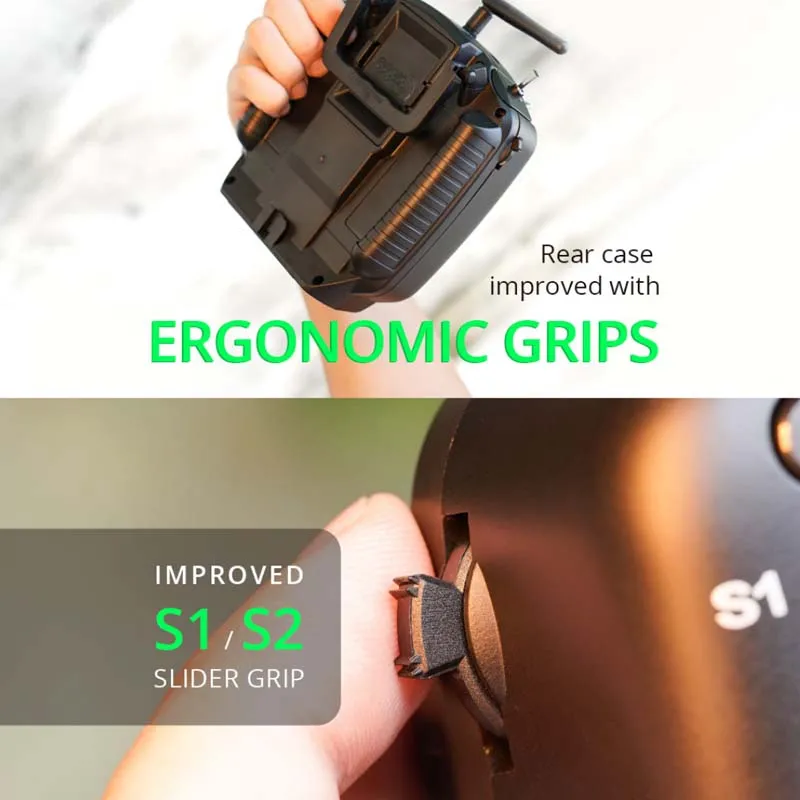

Updated rear case with comfortable grips

Improve S1 / S2 Grips

Improved USB-C QC 3.0 Charging

Updated main board design

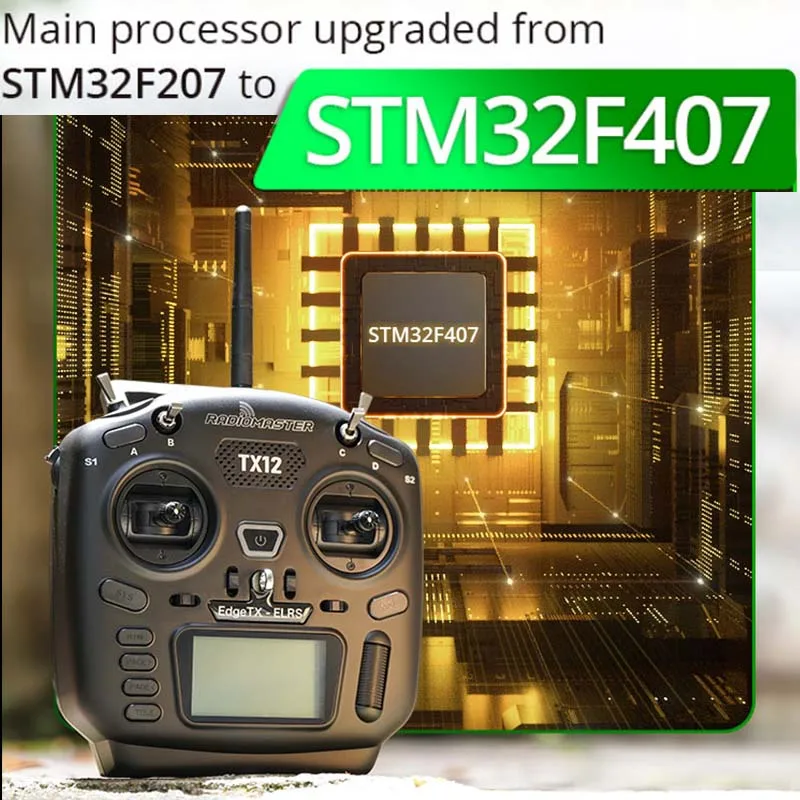

Updated MCU STM32F407

EdgeTX factory installed

SD Card included

Internal ExpressLRS RF Module
