Parameter

Function

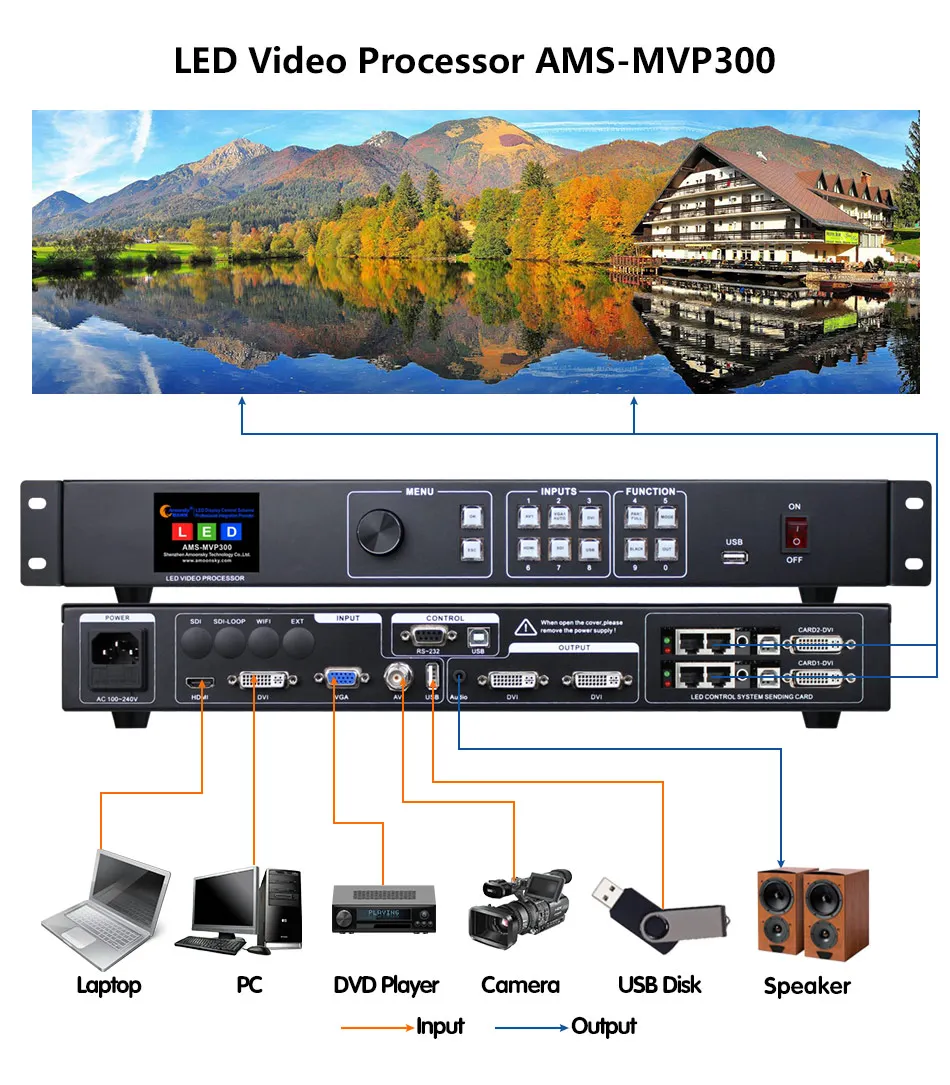

Multiple Video Input -- MVP300 series uses 5 channels of video input, including 1 composite
video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI, 1 channel USB. Basically, the
needs for civil and industrial use have been covered. Seamless switching of all video input.

Video Output Interface -- MVP300 series has 2 DVI video output,The 2 videos programmed
output to LED sending card or display.

Seamless Switching Of Any Channel -- MVP300 series video processor can also seamlessly
switch between any channels, switch quickly

Output Resolution -- MVP300 series has designed a number of practical output resolutions for users. The widest is 1920 points, the highest is 1080 points. Applicable to a variety of dot matrix
displays. Up to 10 output resolutions are available for user selection and can be adjusted
point-to-point output.

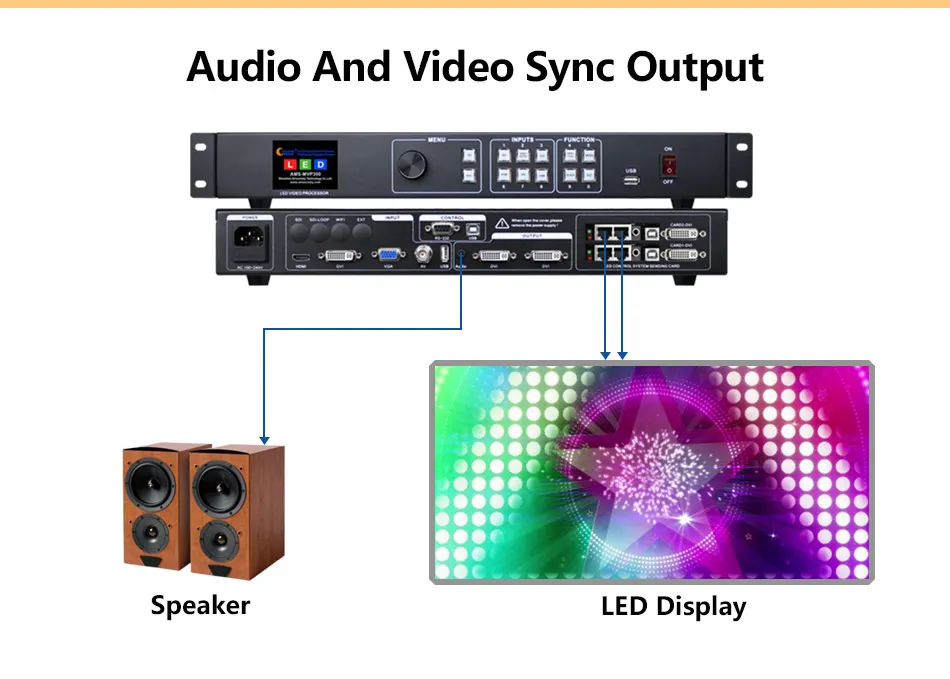

Support Audio Sync Output -- MVP300 series has 1 channel audio output, audio and video
synchronized output.

One Key Black Or Freeze -- MVP300 series has BLACK features, after setting, press the BLACK
button directly to achieve black screen or screen freeze.

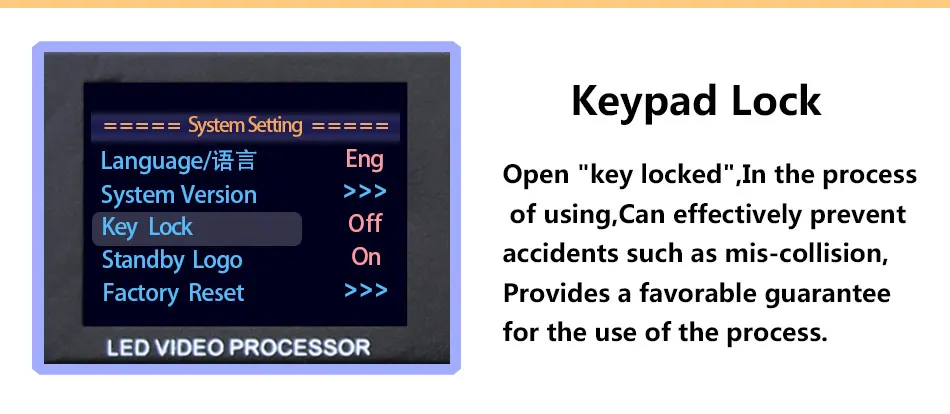

Key Lock Function -- MVP300 series has key lock function,open Keypad lock , during use,can
effectively prevent misuse and other situations,provides a favorable guarantee for the use of the
process.

Mode Saved And Recalled -- MVP300 series adopts 10 sets of user presets. Each set of user
presets can store all user setting parameters, and can realize parameter backup and on-site
calling functions .

Unique Brightness Adjustment Technology -- MVP300 series has a built-in unique brightness
adjustment function, which solves the problem of loss of layering after reducing the brightness,
making the color reproduction more realistic.

Real-time Storage Technology -- The ready-to-use technology solves the user's cumbersome
setup and manual storage process, that is, the user does not need to perform manual save
operation after adjusting or adjusting parameters. MVP300 series automatically stores the user
parameters in the EEPROM, even after the power is turned off, The previous parameters remain
in the device.

ACC ACM Image Filtering -- MVP300 series uses
ACC and ACM image filtering engines. When
processing each color, the nonlinear filtering effect minimizes image loss and restores color
realism.
