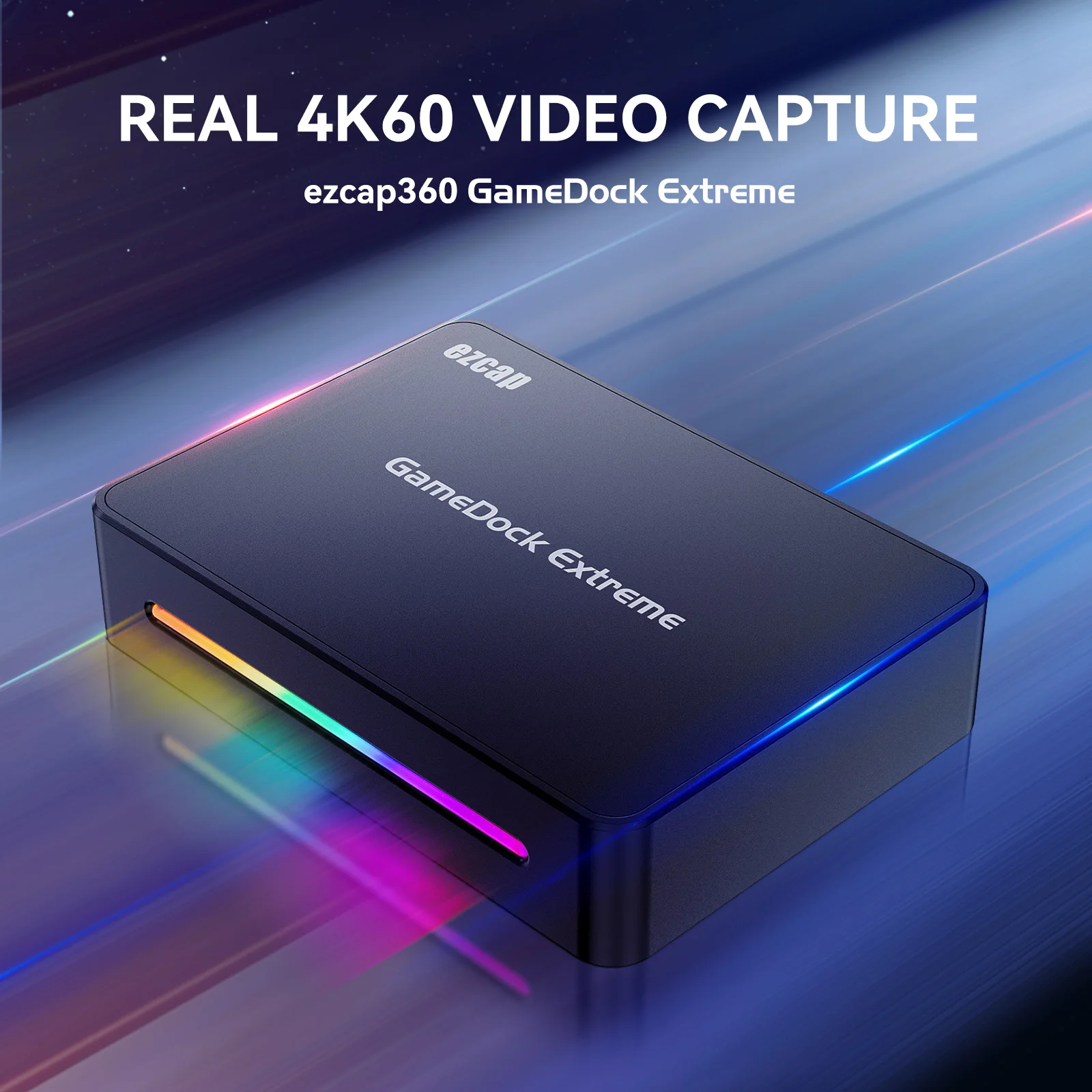

4K 60fps HDMI USB Video Capture Card HDR VRR RGB Gaming Live Streaming

4K 60fps HDMI USB Video Capture Card HDR VRR RGB Gaming Live Streaming

- 4Kp60, 1080p240 and 1440p120 HDMI input and loop output.

- Support HDR, VRR input and loop output.

- 4Kp60, 1080p120, 1440p60, 10bit HDR recording.

- RGB primary color video format output, up to 1080p60.

- Less than 50ms latency.

- UVC standard, no need to manually install drivers.

- Support most third-party video capture software.

- USB 3.2 Gen1 Type-C ultra-high speed interface, UVC plug and play.

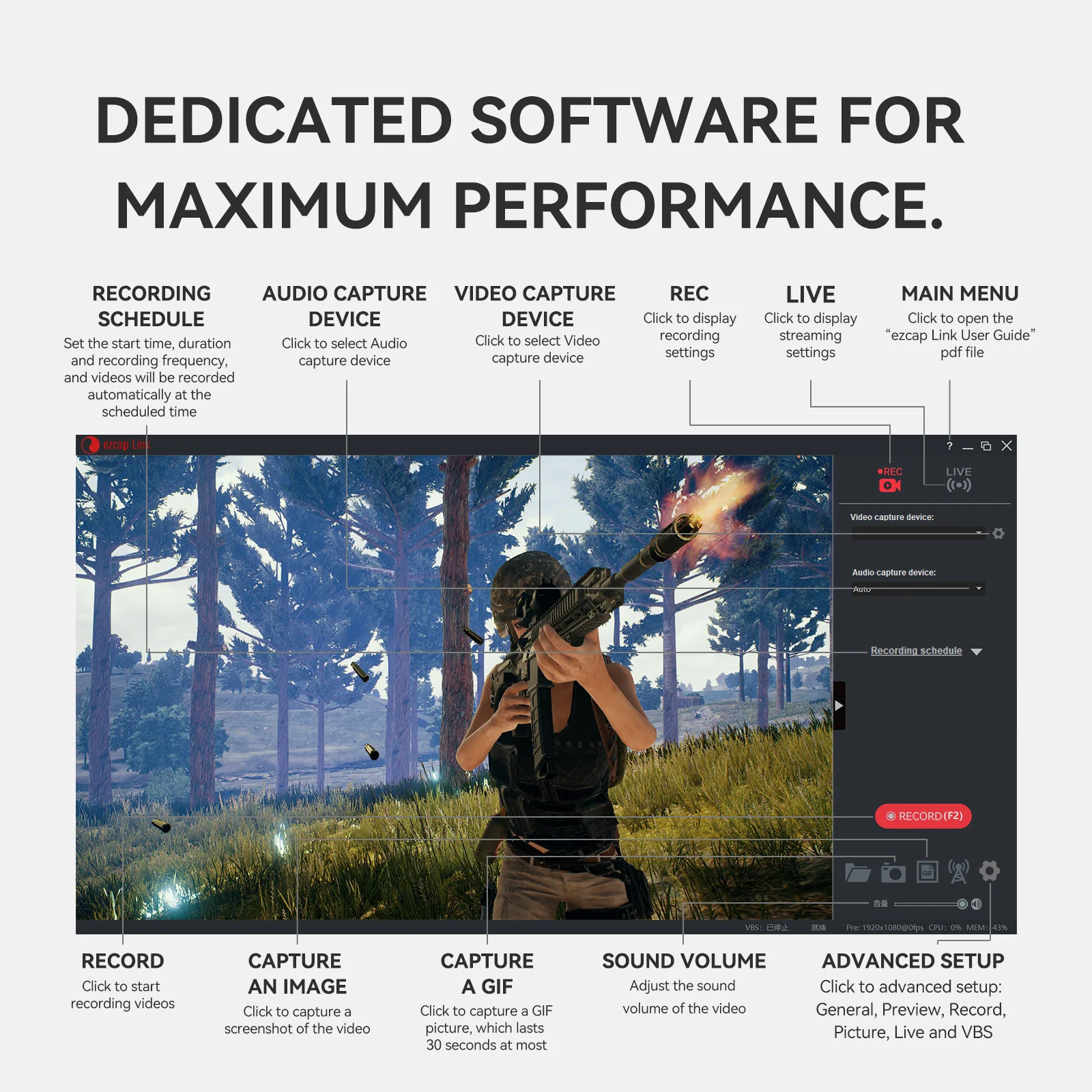

- Equipped with the latest ezcap Link software, easy to record live broadcasts.

Specification:

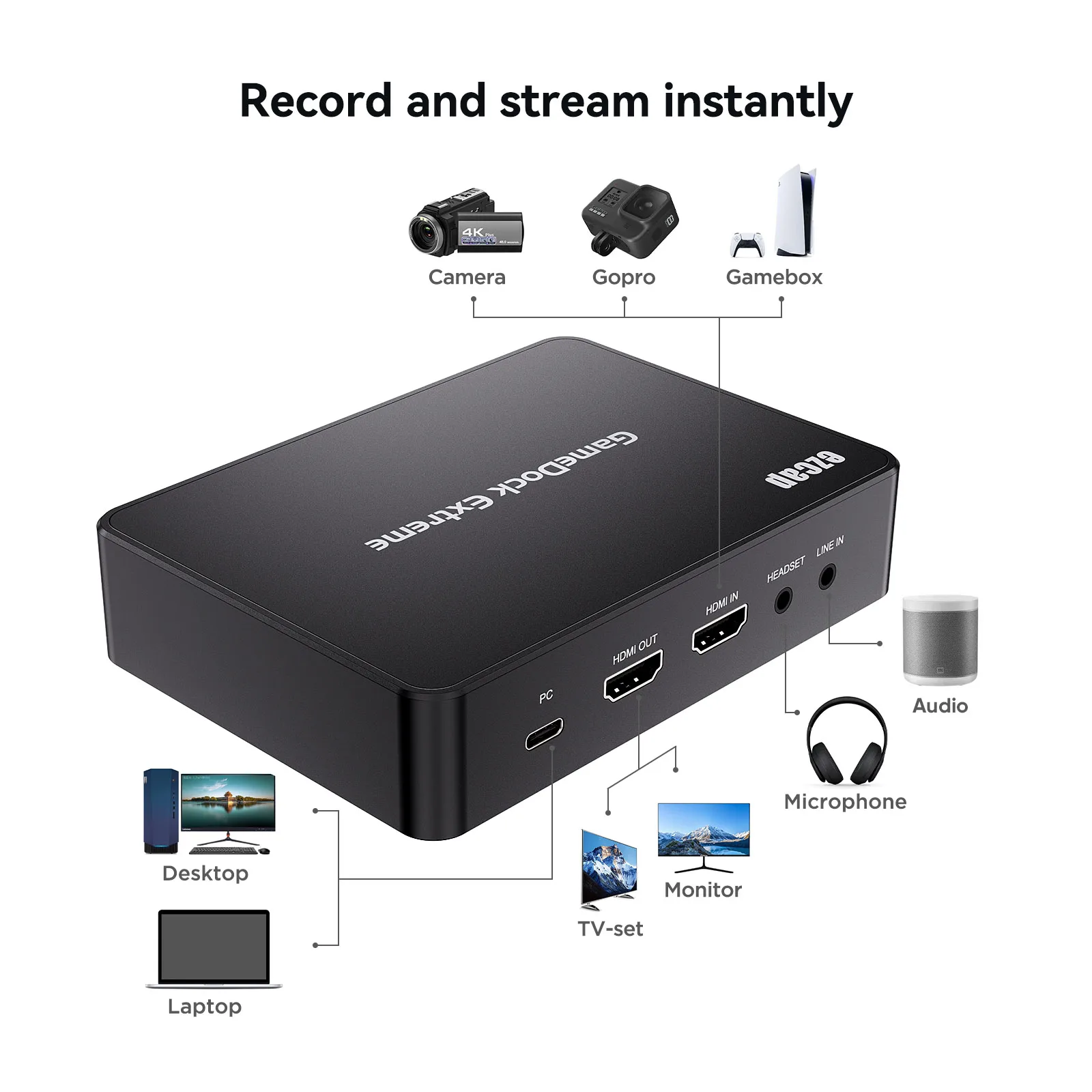

- Interface: USB 3.2 (Gen 1) Type-C

- Video input/output (pass-through): HDMI 2.0

- Audio input: HDMI 2.0 - Supports LPCM 5.1/7.1 channels, 3.5mm line input (3-pole TRS), 3.5mm headphone input (4-pole CTIA)

- Audio output (pass-through): HDMI 2.0, 3.5mm headphone output (4-pole CTIA)

- Maximum HDR pass-through resolution: 2160p60, 1440p120, 1080p240

- Maximum VRR pass-through resolution: 3840 x 2160 - VRR (48 - 60 Hz), 1920 x 1080 - VRR (48 - 120 Hz). (Note: YCbCr 420 VRR input is not supported. For example, XBOX X1, please check the YCC 4:2:2 setting to obtain VRR function.)

- Maximum recording resolution:

3840 x 2160 - 60fps/MJPG, 30fps/NV12/I420

2560 x 1440 - 144fps/MJPG, 60fps/NV12/I420, 50fps/YUY2

2560 x 1080 - 60fps/NV12/I420/YUY2/MJPG

1920 x 1080 - 240fps/MJPG, 120fps/NV12/I420, 60fps/YUY2/RGB24

1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG

- Status indicator: red-power on, blue-HDMI signal connected, color slow flash-device running.

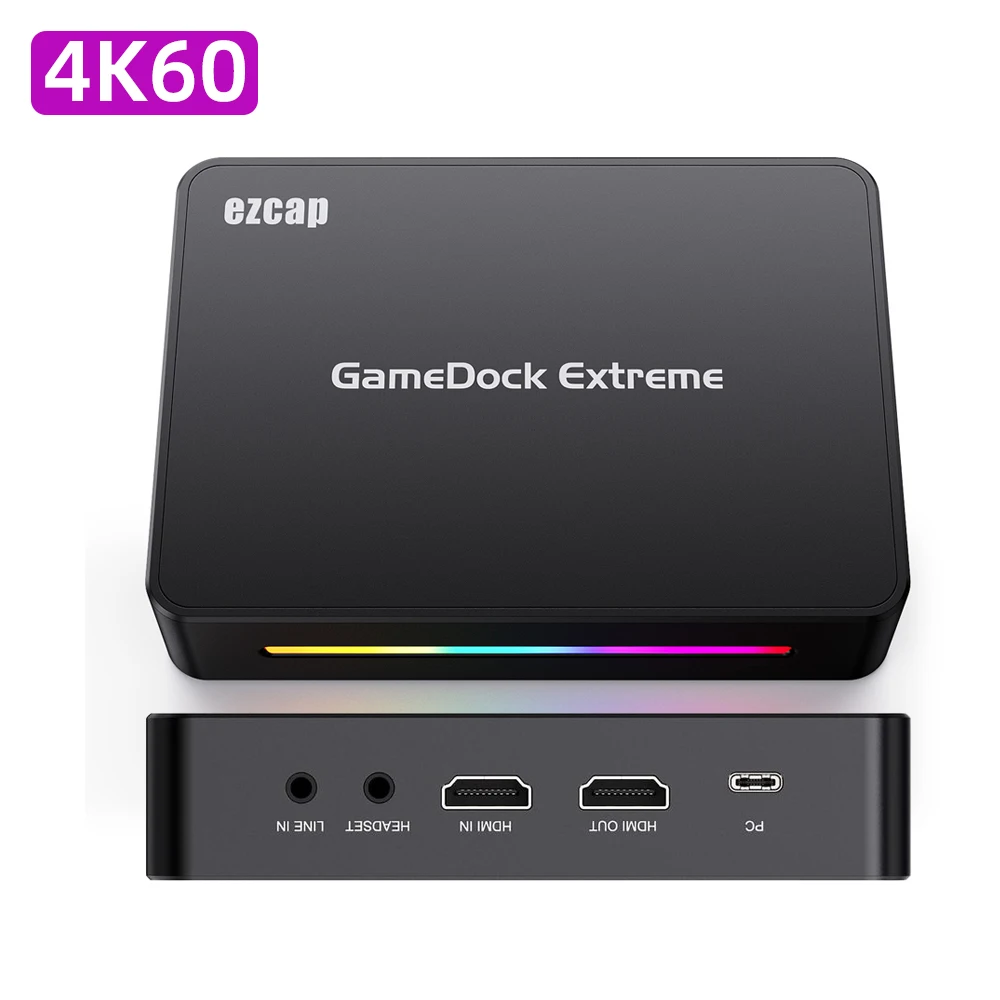

- Packing list: ezcap360 GameDock Extreme x1, USB C to A cable x1, manual x1.

System requirements:

Windows 10 x64 / 11 x64, USB 3.2 (Gen 1) port x1

Desktop: Intel Core i5-6XXX or better, NVIDIA GeForce GTX 1060 or better.

Laptop: Intel Core i7-7700HQ or better, NVIDIA GeForce GTX1050 Ti or better.

8 GB RAM recommended.

macOS 11 / 12, USB 3.2 (Gen 1) port x1

Apple M1 or Intel i7 quad-core or better, Radeon Pro 555 (2 GB VRAM), 16 GB 2400 MHz DDR4.
